30 Channel Seismic Cable 30 Split Spring Take - Out Molded Type

Brand Name : EGL

Model Number : Resistivity Cable 30 Channels

Certification : ISO9001

Place of Origin : China

MOQ : 1 set

Payment Terms : T/T, Western Union,Paypal

Supply Ability : 1000set/month

Delivery Time : 5-8 work days

Packaging Details : Carton

Number of Channel : 30 Channels

Connector Type : Y2M32TK female Connector

Take-out : Split Spring Take-out Molded Type

Interval : 5M or Custom Interval Distance

Lead-in Cable : 10M or Custom Lead-in Length

Working Temperature : -40℃~+70℃

Price : Negotiable

Contact Now

Resistivity Cable 30 Channels ,with 30 Split Spring Take-out Molded Type

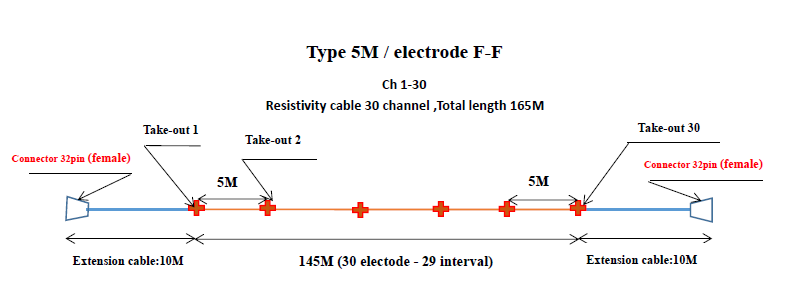

Resistivity cable 30 channels, interval 5m, with Split Spring Take-out Molded Type,lead-in 10m at each end,terminated with Y2M32TK female Connector at each end, total cable length 165m .

30 Channel Seismic Cable 30 Split Spring Take - Out Molded Type

Resistivity cable 30 channels, interval 10m, with Split Spring Take-out Molded Type,lead-in 15m at each end,terminated with Y2M32TK female Connector at each end, Divide into two sections from Take-out 15 to Take-out 16 and connect with male and female plugs(Y2M32TK), total cable length 330m .

30 Channel Seismic Cable 30 Split Spring Take - Out Molded Type

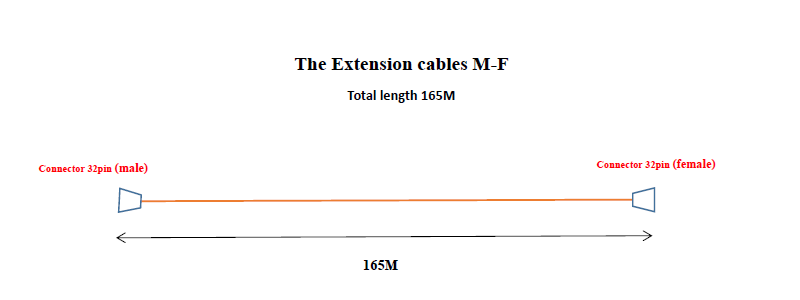

The Extension cables M-F, Total length 165M .

30 Channel Seismic Cable 30 Split Spring Take - Out Molded Type

Type	Resistivity Cable
Number of Channel	21-channel(AB)/30-channel/32-channel Optional
Connector Type	27-pin connector/ 30-pin connector/ 32-pin connector/ 50-pin connector/ Optional
Cable O.D	7.2mm(32cores)
Electrode Connection	Split Spring Take-out Molded Type/ Split Spring Take-out Ordinary Type/ Optional
Lead-in	10m/20m / or Custom Lead-in Length
Interval	5m/10m / or Custom Interval Distance
Working Temperature	-40℃~+70℃

30 Channel Seismic Cable 30 Split Spring Take - Out Molded Type
