40Hz Digital Seismic Geophone Horizontal Terminal Split Spring Connector

Product Categories

EGL Equipment services Co.,LTD

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Brand Name : EGL

Model Number : Geophone 40Hz Horizontal

Certification : ISO9001

Place of Origin : China

MOQ : 1 sets

Payment Terms : T/T, Western Union,PayPal

Supply Ability : 10000sets/month

Delivery Time : 5-8 work days

Packaging Details : Carton

Natural Frequency : 40Hz±5%

Geophone Case : Horizontal Waterproof Land Case

Spike : 75mm

Lead-in Cable : 1 M

Cable O.D : 4.6mm

Connector Type : Split Spring connector

Price : Negotiable

Contact Now

Seismic Geophone 40Hz Horizontal terminated with Split Spring connector

Type	Single Geophone 40Hz
Geophone Direction	Vertical Direction / Horizontal Direction
Geophone Type	40Hz
Geophone Case	Waterproof Land Case
Spike	Steel Spike length75mm
Lead-in	Standard:1mlead-in with O.D.4.6mm Custom Outer Diameter / Lead Distance available
Connector Type	Mueller Clips Split Spring Clip KCK Connector( Male or Female / Push Fit or Lock Ring Type) Kooter Connector( Male or Female /KCL male or KCL female or KC2L-4 Dual ) *Other Connector Type available

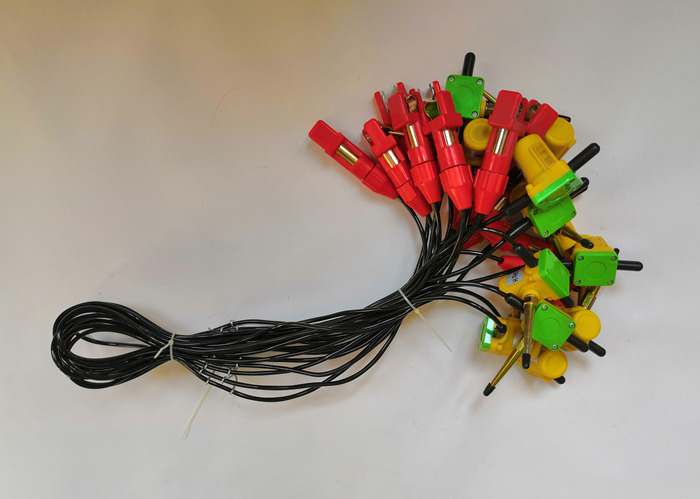

Single geophone 40Hz Horizontal in land case with spike 75mm, with 1m leader cable,terminated with Split Spring connector.

40Hz Digital Seismic Geophone Horizontal Terminal Split Spring Connector

Type	EG-40-II
Natural Frequency ( Hz )	40 ± 5.0%
Coil resistance(Ω)	540 ± 5.0%
Open Circuit Damping	0.620 ± 5.0%
Damping With Shunt Resistor	0.648 ± 5.0%
Open Circuit Intrinsic Voltage Sensitivity( v/m/s )	32.5 v/m/s ± 5.0%
Sensitivity With Shunt Resistor ( v/m/s )	30.3 v/m/s ± 5.0%
Damping Calibration-Shunt Resistance(Ω)	7500
Harmonic distortion ( % )	＜0.20%
Typical Spurious Frequency (Hz )	≥300Hz
Moving Mass ( g )	9.3g
Typical case to coil motion p-p ( mm )	1.8mm
Allowable Tilt	≤20º
Operating Temperature Range ( ℃ )	-40℃ TO +100℃
Height ( mm )	32
Diameter ( mm )	26
Weight ( g )	80
Warranty Period	3 years
