Digital Horizontal Geophone / Seismic Geophones String Steel Spike

Product Categories

EGL Equipment services Co.,LTD

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Brand Name : EGL

Model Number : Geophone 28Hz Horizontal

Certification : ISO9001

Place of Origin : China

MOQ : 1 sets

Payment Terms : T/T, Western Union,PayPal

Supply Ability : 10000sets/month

Delivery Time : 5-8 work days

Packaging Details : Carton

Natural Frequency : 28Hz±5%

Geophone Case : Horizontal Waterproof Land Case

Spike : 75mm

Lead-in Cable : 1 M

Cable O.D : 4.6mm

Connector Type : KCK Male connector

Price : Negotiable

Contact Now

Seismic Geophone 28Hz Horizontal with KCK Male connector (408 connector)

Type	Single Geophone 28Hz
Geophone Direction	Vertical Direction / Horizontal Direction
Geophone Type	28Hz
Geophone Case	Waterproof Land Case
Spike	Steel Spike length75mm
Lead-in	Standard:1mlead-in with O.D.4.6mm Custom Outer Diameter / Lead Distance available
Connector Type	Mueller Clips Split Spring Clip KCK Connector( Male or Female / Push Fit or Lock Ring Type) Kooter Connector( Male or Female /KCL male or KCL female or KC2L-4 Dual ) *Other Connector Type available

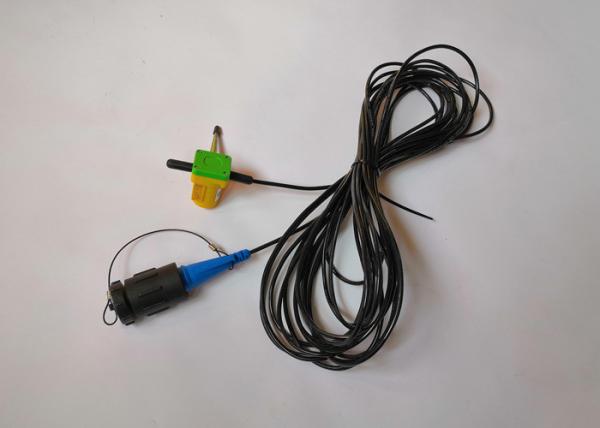

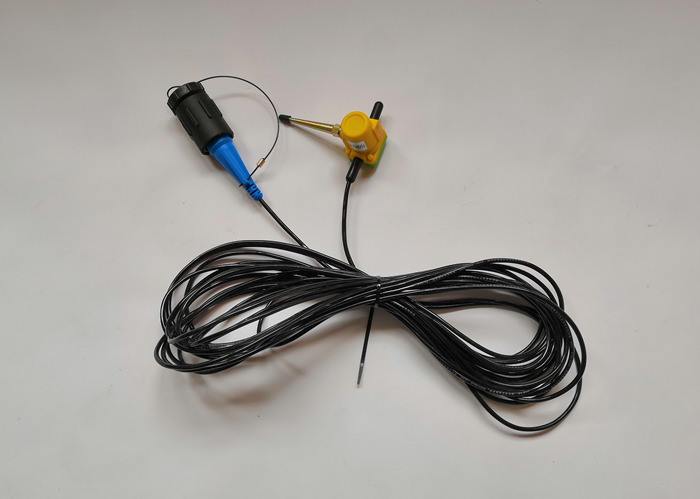

Single geophone 28Hz Horizontal in land case with spike 75mm, with 1m leader cable,terminated with KCK Male connector (408 connector)

Digital Horizontal Geophone / Seismic Geophones String Steel Spike

Type	EG-28-II
Natural Frequency ( Hz )	28Hz ± 5%
Coil resistance(Ω)	385 ± 5%
Open Circuit Damping	0.6± 5%
Damping With Shunt Resistor	0.634 ± 5%
Open Circuit Intrinsic Voltage Sensitivity ( v/m/s )	31.0 v/m/s ± 5%
Sensitivity With Shunt Resistor ( v/m/s )	29.5 v/m/s ± 5%
Damping Calibration-Shunt Resistance(Ω)	7500Ω
Harmonic distortion ( % )	＜0.2%
Typical Spurious Frequency (Hz )	≧300Hz
Moving Mass ( g )	10.2g
Typical case to coil motion p-p ( mm )	1.6mm
Allowable Tilt	≦20º
Operating Temperature Range ( ℃ )	-40℃ TO +100℃
Height ( mm )	32mm
Diameter ( mm )	26mm
Weight ( g )	80g
Warranty Period	3 years
