75mm Spike Seismic Geophone 14Hz Marshy Geophone

Product Categories

EGL Equipment services Co.,LTD

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Brand Name : EGL

Model Number : Geophone 14Hz Vertical

Certification : ISO9001

Place of Origin : China

MOQ : 1 sets

Price : Negotiable

Payment Terms : T/T, Western Union,PayPal

Supply Ability : 10000sets/month

Delivery Time : 5-8 work days

Packaging Details : Carton

Name : 14Hz Marshy Geophone

Natural Frequency : 14Hz±5%

Geophone Case : Waterproof Land Case

Spike : 75mm Spike

Lead-in Cable : 1 M

Cable O.D : 4.6mm

Contact Now

75mm Spike Seismic Geophone 14Hz Marshy Geophone

Seismic Geophone Parameters

Type	Seismic Geophone 14Hz
Geophone Direction	Vertical or Horizontal Direction
Geophone Type	14 Hz
Geophone Case	Waterproof Land Case
Spike	Steel Spike length75mm
Lead-in	Standard:1mlead-in with O.D.4.6mm Custom Outer Diameter / Lead Distance available
Connector Type	Mueller Clips Split Spring Clip KCK Connector( Male or Female / Push Fit or Lock Ring Type) Kooter Connector( Male or Female /KCL male or KCL female or KC2L-4 Dual ) *Other Connector Type available

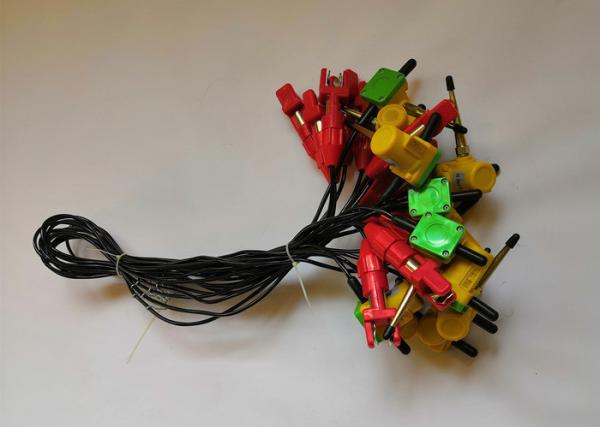

Seismic Geophone 14Hz Vertical in land case with spike 75mm, with 1m leader cable,terminated with Mueller Clip connector.

75mm Spike Seismic Geophone 14Hz Marshy Geophone

Type	EG-14-II
Natural Frequency ( Hz )	14 Hz ± 5%
Coil resistance(Ω)	375 Ω ± 5%
Open Circuit Damping	0.2 ±5%
Damping With Shunt Resistor	0.6 ± 5%
Open Circuit Intrinsic Voltage Sensitivity ( v/m/s )	28.8 v/m/s ± 5%
Sensitivity With Shunt Resistor ( v/m/s )	18.2 v/m/s ± 5%
Damping Calibration-Shunt Resistance(Ω)	640Ω
Harmonic distortion ( % )	＜0.2%
Typical Spurious Frequency (Hz )	≧240Hz
Moving Mass ( g )	11.6g
Typical case to coil motion p-p ( mm )	2mm
Allowable Tilt	≦20º
Operating Temperature Range ( ℃ )	-40℃ TO +100℃
Height ( mm )	32mm
Diameter ( mm )	25.4mm
Weight ( g )	74g
Warranty Period	3 years
