Refraction Survey 10Hz Vertical Geophone High False Frequency

$China Refraction Survey 10Hz Vertical Geophone High False Frequency wholesale$

Brand Name : EGL

Model Number : GS-32CT Geophone 10Hz

Place of Origin : CHINA

MOQ : 1 pcs

Price : Negotiable

Payment Terms : Western Union, T/T,PayPal

Supply Ability : 10000pcs/month

Delivery Time : 5-8 work days

Packaging Details : Carton

Natural Frequency ( Hz ) : 10Hz ± 2.5%

Coil resistance（Ω） : 395Ω ± 2.5%

Open Circuit Damping : 0.316 ± 2.5%

Damping With Shunt Resistor : 0.7 ± 2.5%

Open Circuit Intrinsic Voltage Sensitivity( v/m/s ) : 27.5 v/m/s ± 2.5%

Sensitivity With Shunt Resistor ( v/m/s ) : 19.7 v/m/s ± 2.5%

Harmonic distortion( % ) : ＜0.1%

Typical Spurious Frequency (Hz ) : ＞250Hz

Allowable Tilt : 10º

Height ( mm ) : 33.5mm

Diameter ( mm ) : 25.4mm

Weight ( g ) : 86g

Warranty Period : 3 years

Contact Now

Refraction Survey 10Hz Vertical Geophone High False Frequency

Geophone with vertical and horizontal direction, and geophone-consisted three-component geophones, borehole geophone, tomographic imaging geophone series with stable performance, high fidelity and consistent quality in oil, gas exploration and other fields.

Vertical Geophone Specification

Type	EG-10-III (GS-32CT Geophone)
Natural Frequency ( Hz )	10Hz ± 2.5%
Coil resistance(Ω)	395Ω ± 2.5%
Open Circuit Damping	0.316 ± 2.5%
Damping With Shunt Resistor	0.7 ± 2.5%
Open Circuit Intrinsic Voltage Sensitivity( v/m/s )	27.5 v/m/s ± 2.5%
Sensitivity With Shunt Resistor ( v/m/s )	19.7 v/m/s ± 2.5%
Damping Calibration-Shunt Resistance (Ω)	1000Ω
Harmonic distortion( % )	＜0.1%
Typical Spurious Frequency (Hz )	＞250Hz
Moving Mass ( g )	11.2g
Typical case to coil motion p-p ( mm )	1.5mm
Allowable Tilt	10º
Operating Temperature Range ( ℃ )	-40℃ TO +100℃
Height ( mm )	33.5mm
Diameter ( mm )	25.4mm
Weight ( g )	86g
Warranty Period	3 years

All parameters specified here in are rated at a temperature 20℃±2℃ .

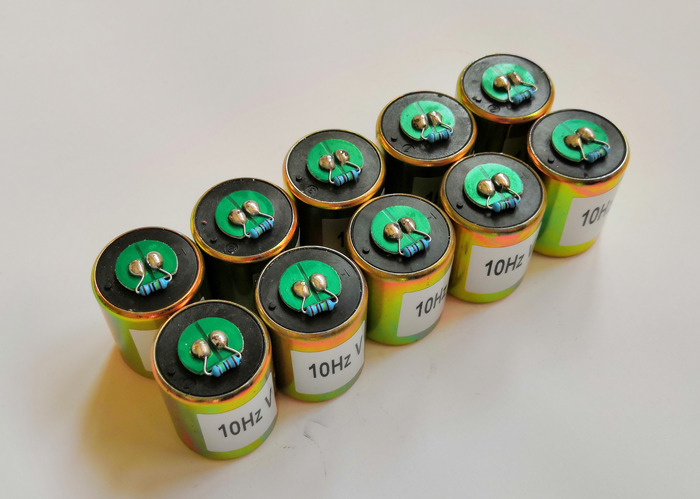

$Refraction Survey 10Hz Vertical Geophone High False Frequency$

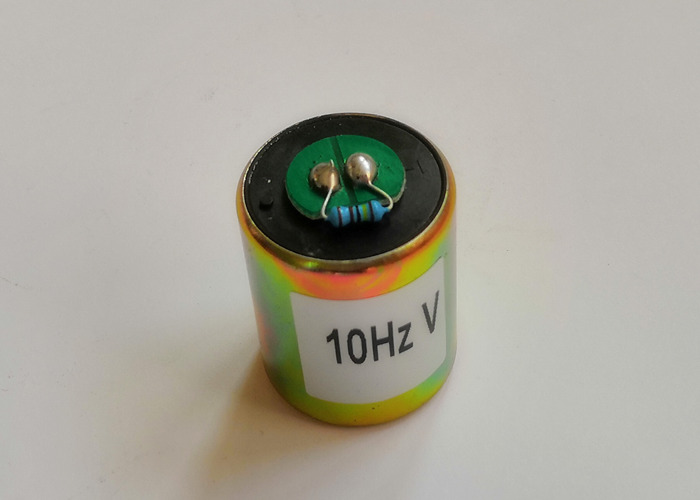

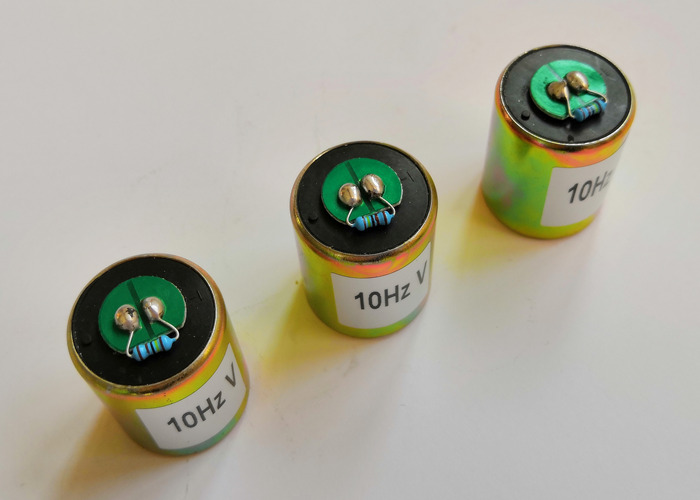

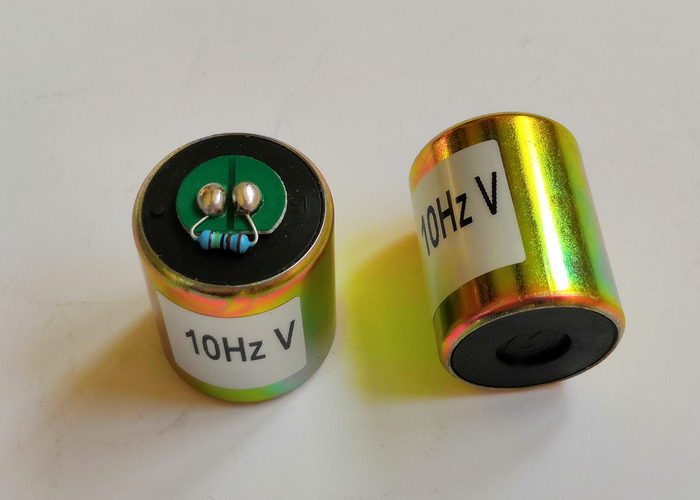

$Refraction Survey 10Hz Vertical Geophone High False Frequency$ $Refraction Survey 10Hz Vertical Geophone High False Frequency$ $Refraction Survey 10Hz Vertical Geophone High False Frequency$
