Oil Industry SG10 Geophone Seismic Sensor Highest Tilt Tolerance

Product Categories

EGL Equipment services Co.,LTD

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Brand Name : EGL

Model Number : SG10

Place of Origin : CHINA

MOQ : 1 pcs

Price : Negotiable

Payment Terms : Western Union, T/T,PayPal

Supply Ability : 10000pcs/month

Delivery Time : 5-8 work days

Packaging Details : Carton

Natural Frequency ( Hz ) : 10Hz ± 2.5%

Name : SG10 Geophone Seismic Sensor

Harmonic Distortion ( % ) : ＜0.075

Typical Spurious Frequency ( Hz ) : ＞240

Moving Mass ( g ) : 8.4

Feature : Highest Tilt Tolerance

Max.tilt angle : 15º

Element Diameter (mm) : 27.4

Element Height (mm) : 30.15

Application : Oil Industry

Contact Now

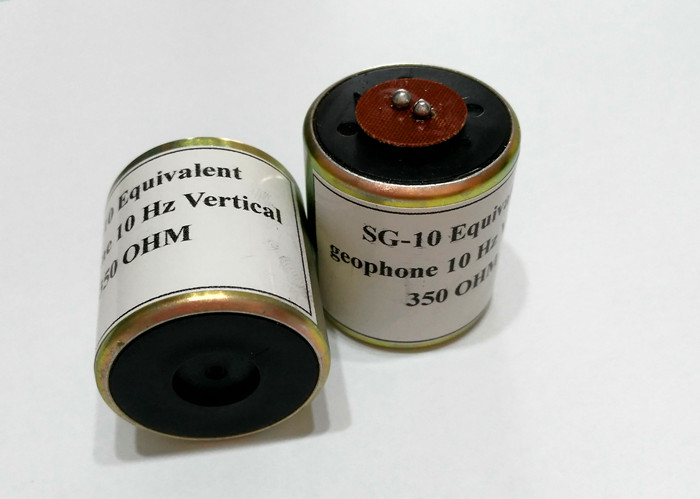

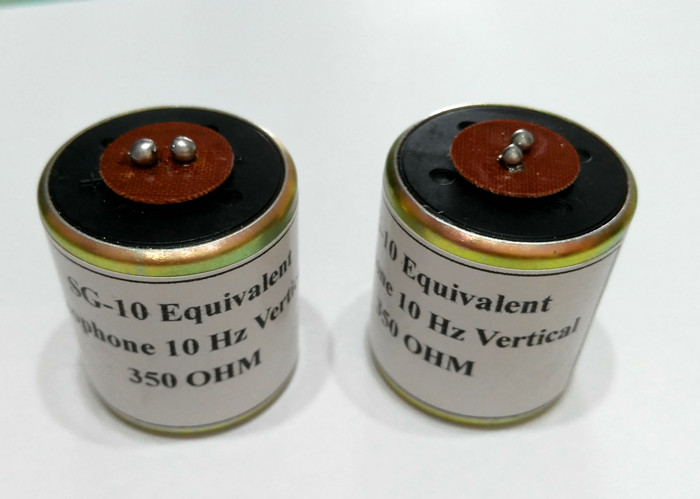

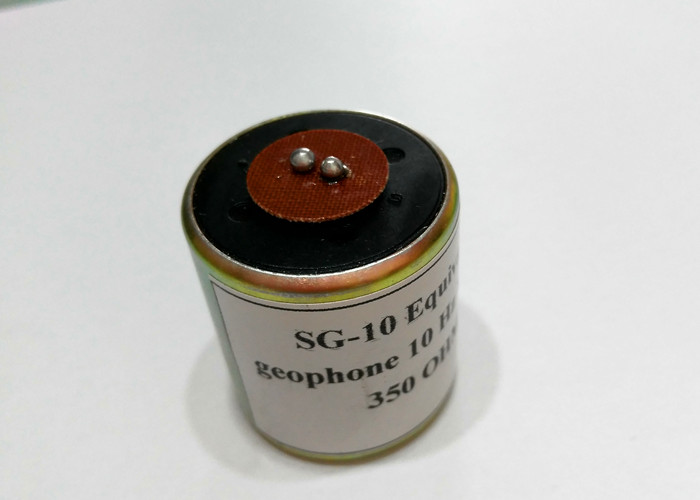

Oil Industry SG10 Geophone Seismic Sensor Highest Tilt Tolerance

The SG-10 geophone is very sensible and covers a wide frequency range of monitoring

The SG-10 geophone was very low distortion and the highest tilt tolerance in the industry.

Specification of Geophone Seismic Sensor

Type	SG10 Geophone
Natural frequency ( Hz )	10Hz±2.5%
Open circuit damping	0.68±5%
Sensitivity (v/m/s)	22.8±2.5%
Coil Resistance (ohm)	350±3.5%
Harmonic Distortion ( % )	＜0.075
Typical Spurious Frequency ( Hz )	＞240
Moving Mass ( g )	8.4
Max.coil excursion p-p (mm)	1.78
Max.tilt angle	15º
Element Diameter (mm)	27.4
Element Height (mm)	30.15
Element Weight (g)	78
Operating Temperature(℃)	-40℃ to +100℃

All parameters specified here in are rated at a temperature 20℃±2℃ .
